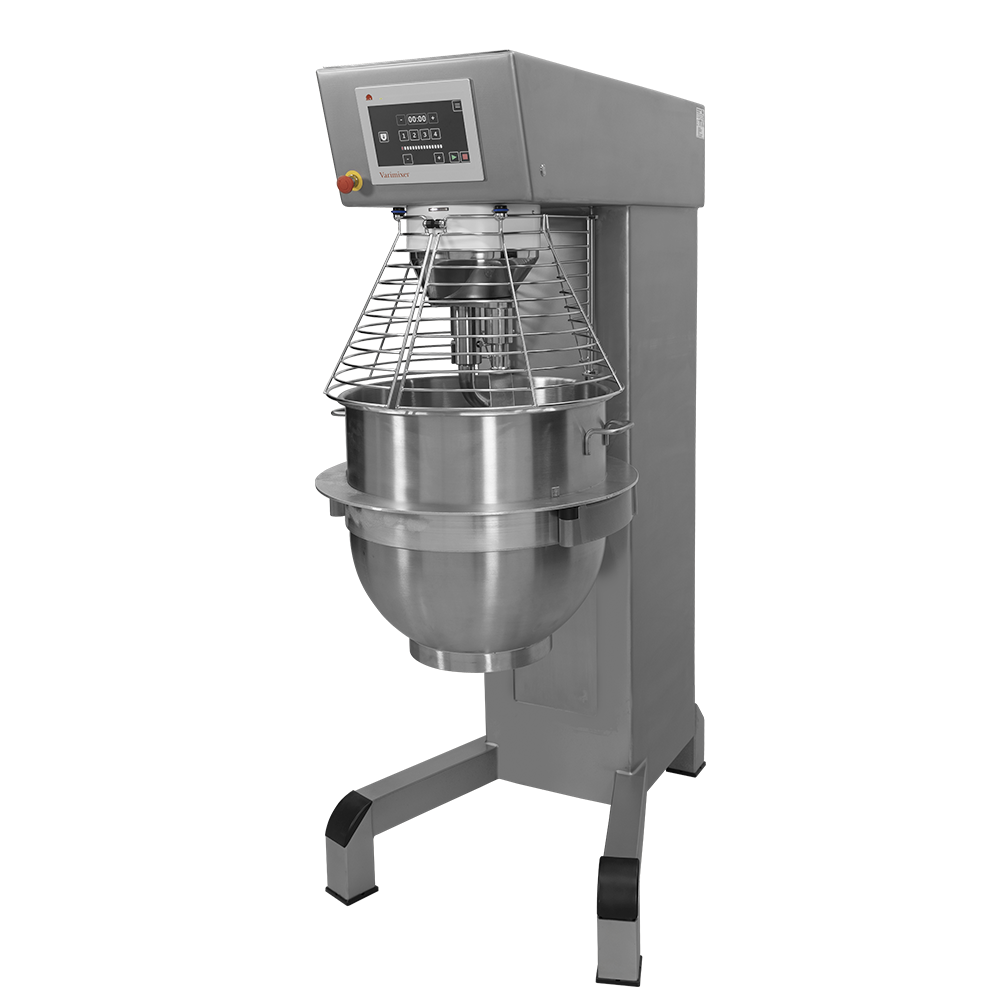

ERGO Automated Mixers

Ergonomic, Innovative, Hygienic and Simple to Maintain

Ergonomic, innovative, hygienic and simple to maintain, the ERGO sets a new standard for mixing. The tall working height promotes a comfortable working posture, reducing the need for bending or heavy lifting. The bowl lowers past the tip of the tool, allowing operators to remove the bowl with the tool in place for faster batch rotation. Touch screen controls are intuitive and versatile, with manual operation or programmable recipe automation. Stainless steel construction and IP53 standard ratings make these mixers water resistant and easy to clean without causing rust or damage. Regular maintenance is non-existent and diagnosing has never been simpler. Full machine operation and error logs are visible on screen and exportable to USB, simplifying service. With all these exclusive features, the ERGO is the most advanced mixer on the market.

REQUEST A QUOTE
A Middleby Company


Hard Work Made Easy

From the ease of operation and programmable automation to the simplicity of care in cleanability and service, the ERGO brings an unmatched experience to baking operations. Imagine the possibilities of a mixer this intelligent, intuitive and efficient. With the ERGO's cutting edge technology and expert craftsmanship, you don't have to.



ergo video thumbnail

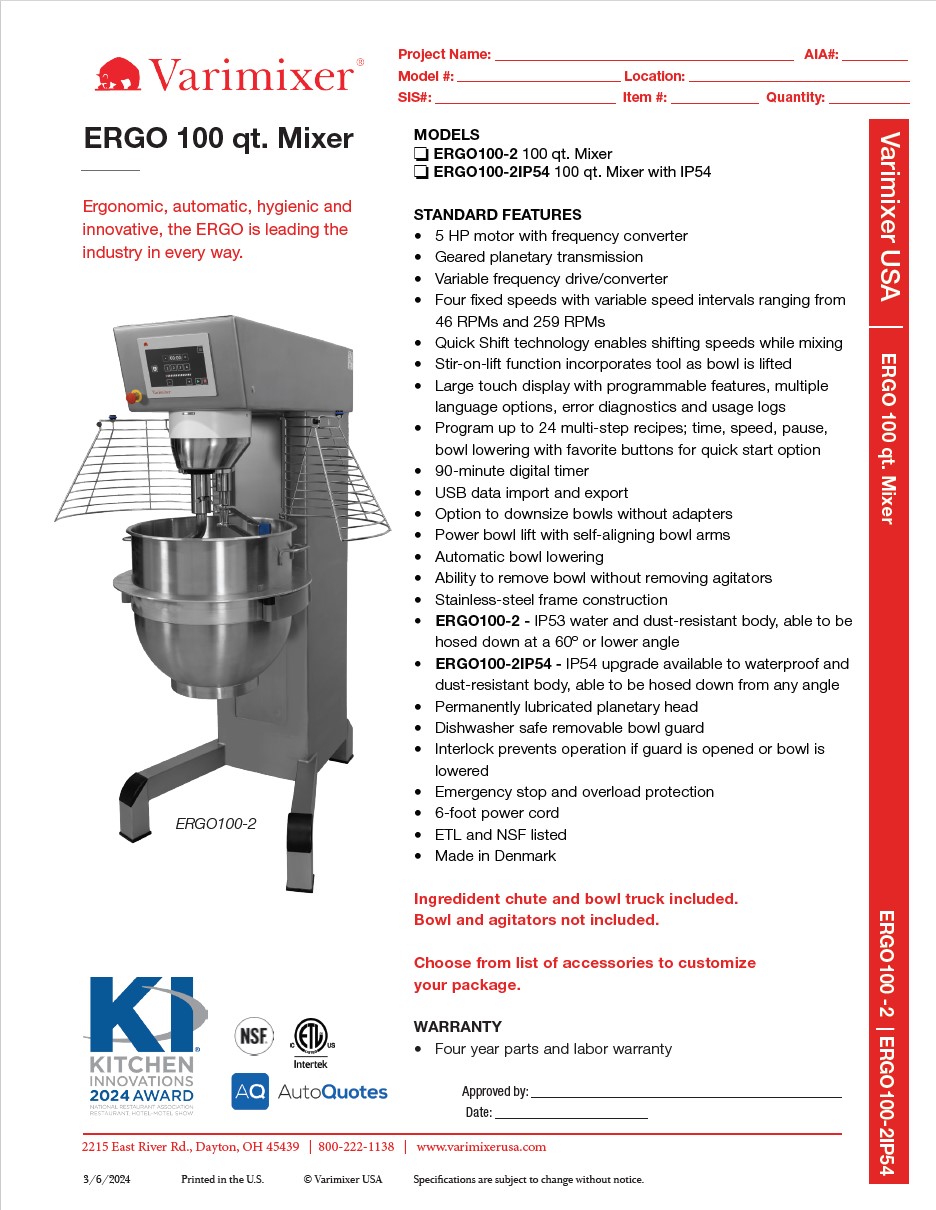

  • 5 HP motor with frequency converter
  • Geared planetary transmission
  • Variable frequency drive/converter
  • Four fixed speeds with variable speed intervals ranging from 46 RPMs and 259 RPMs
  • Quick Shift technology enables shifting speeds while mixing
  • Stir-on-lift function incorporates tool as bowl is lifted

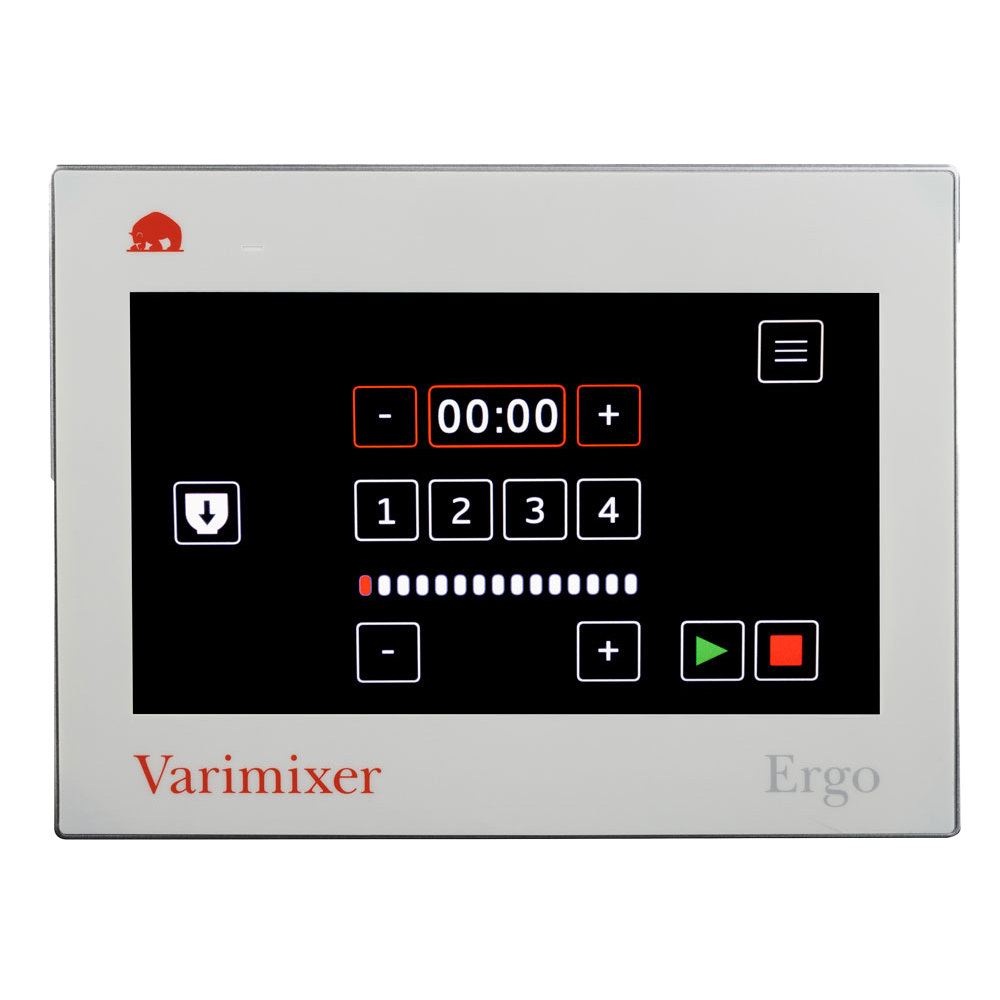

  • Large touch display with programmable features, multiple language options, error diagnostics and usage logs
  • Program up to 24 multi-step recipes; time, speed, pause, bowl lowering with favorite buttons for quick start option
  • 90-minute digital timer
  • USB data import and export

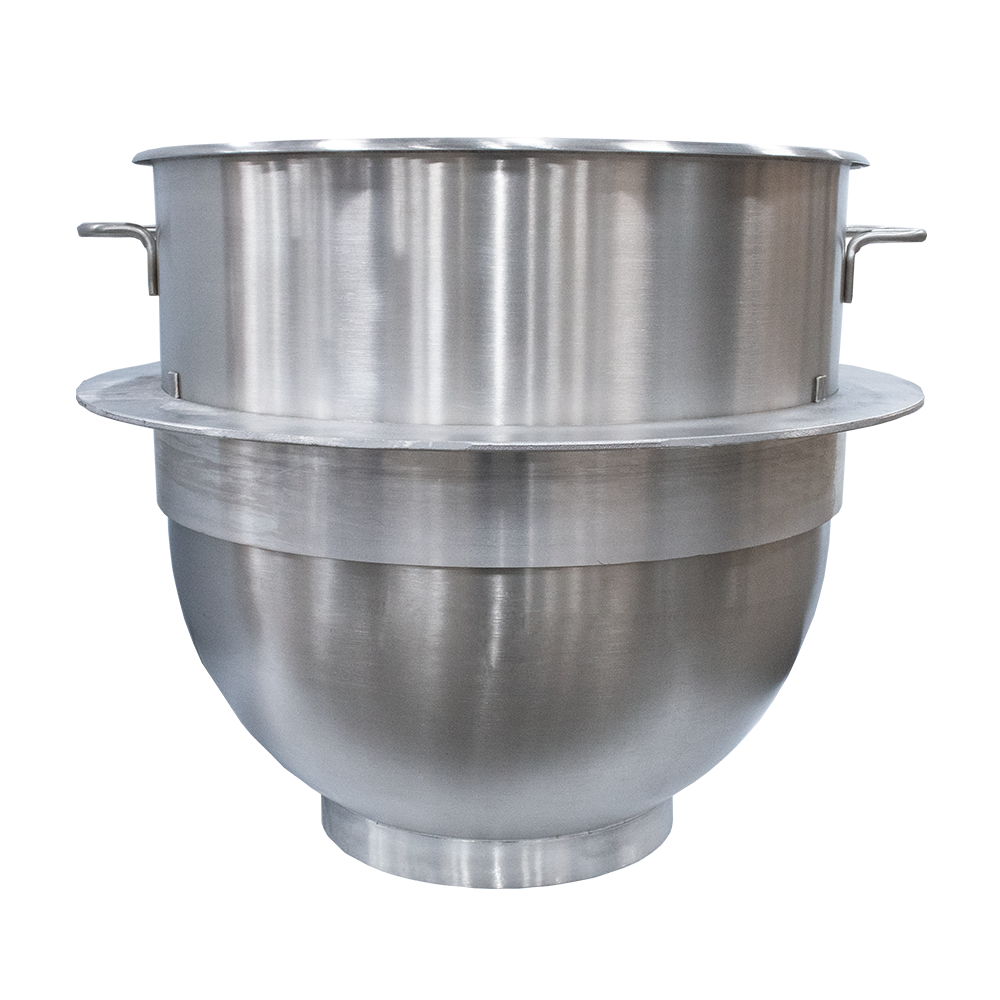

  • Option to downsize bowls without adapters

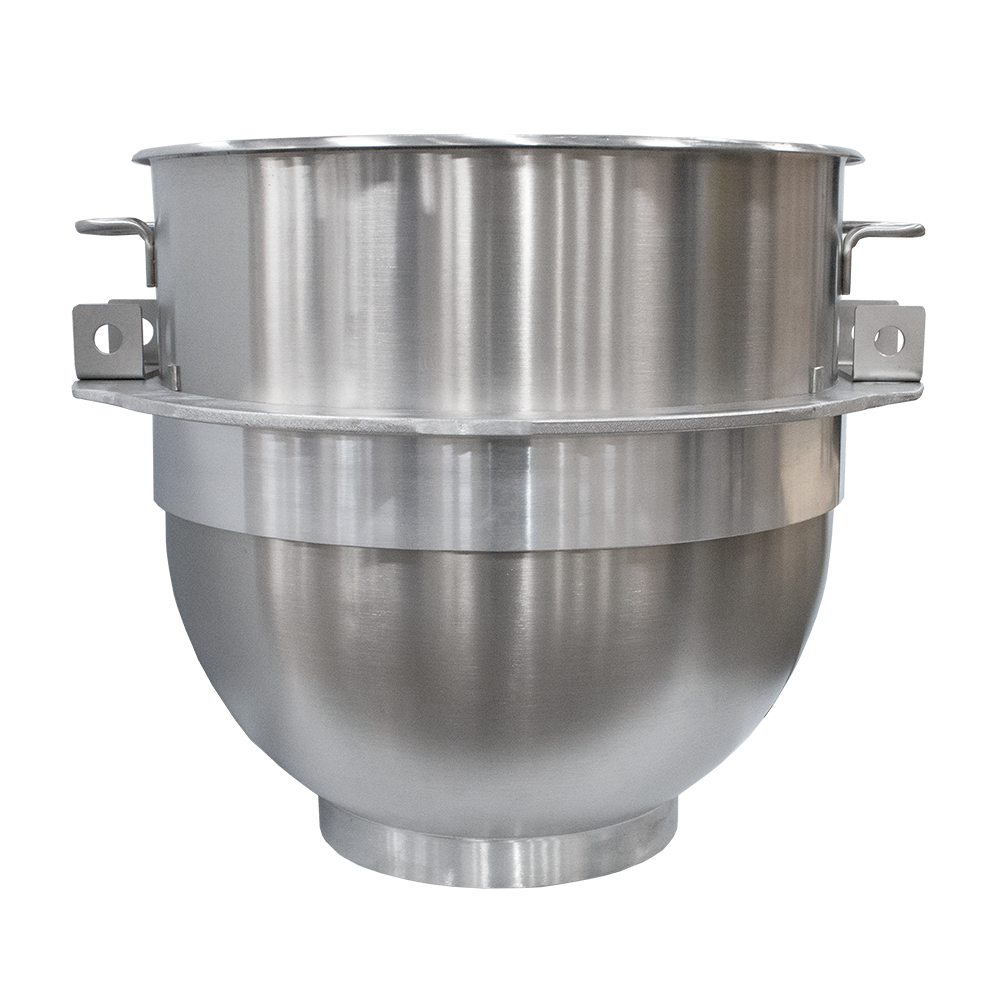

  • Power bowl lift with self-aligning bowl arms
  • Automatic bowl lowering

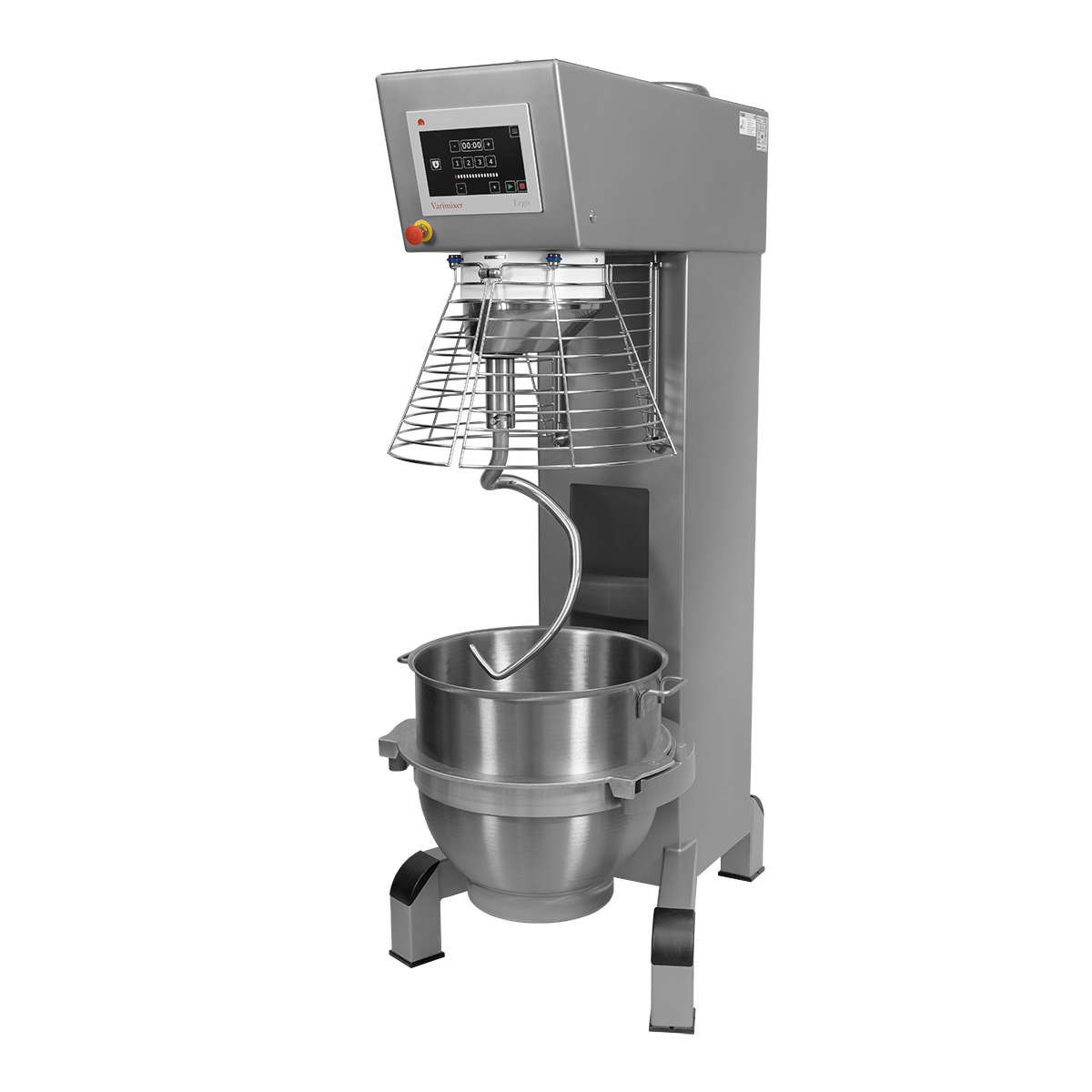

  • Ability to remove bowl without removing agitators
  • Stainless-steel frame construction
  • ERGO100-2 - IP53 water and dust-resistant body, able to be hosed down at a 60° or lower angle
  • ERGO100-2IP54 - IP54 upgrade available to waterproof and dust-resistant body, able to be hosed down from any angle
  • Permanently lubricated planetary head

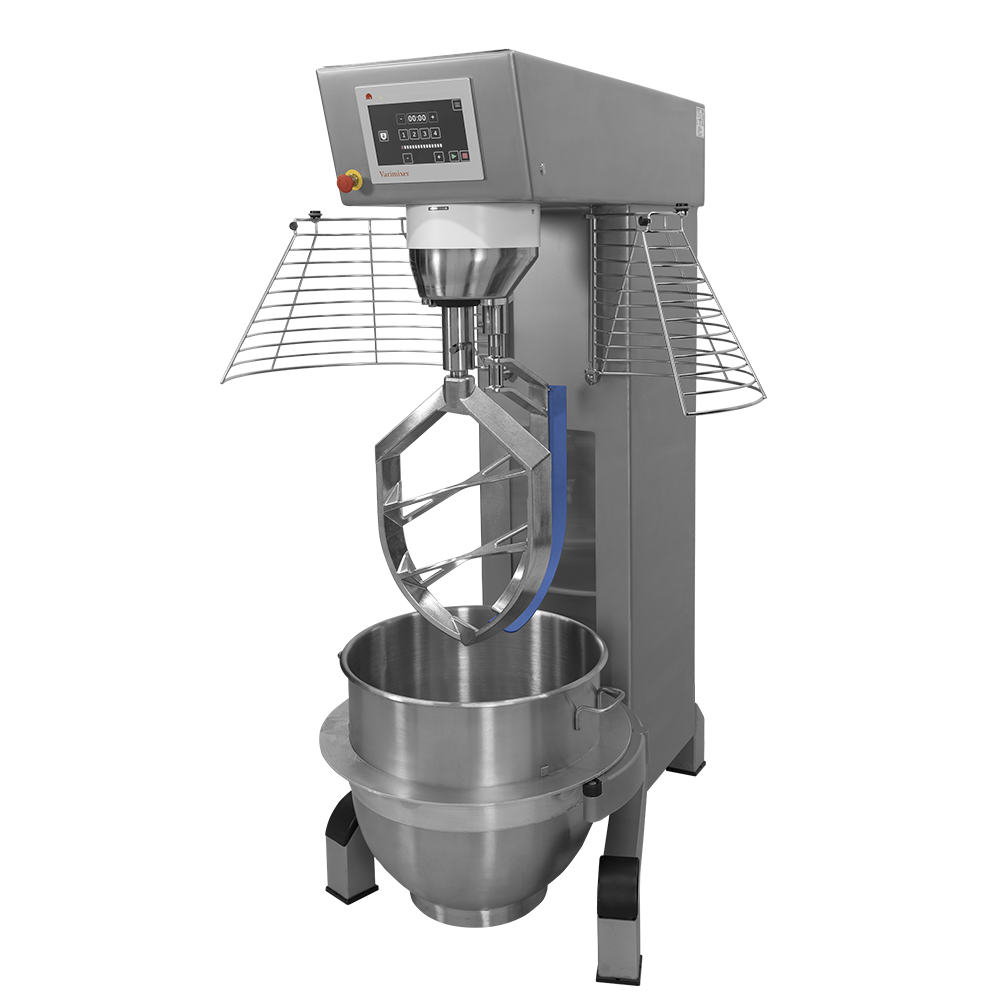

  • Dishwasher safe removable bowl guard

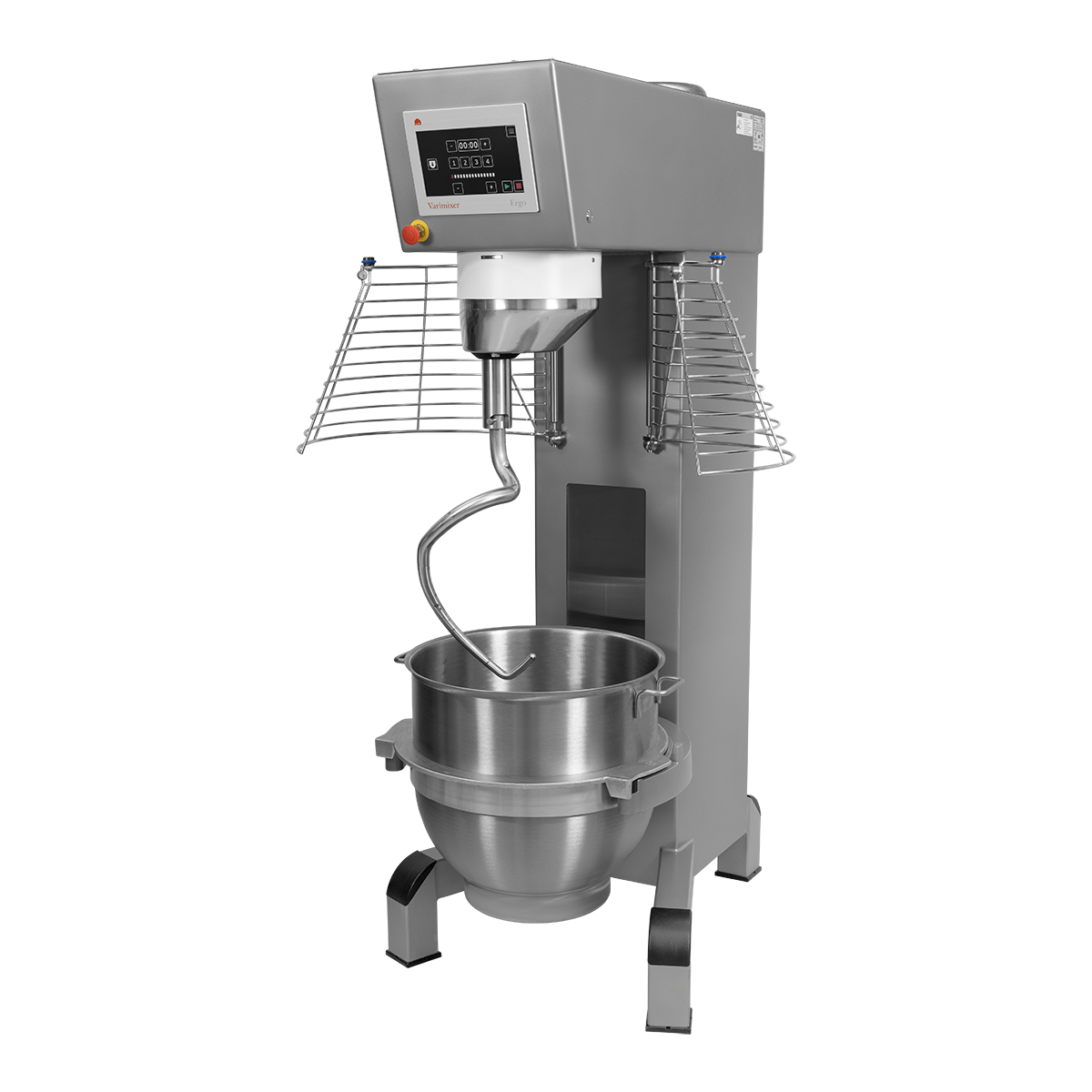

  • Interlock prevents operation if guard is opened or bowl is lowered
  • Emergency stop and overload protection
  • 6-foot power cord
  • ETL and NSF listed
  • Made in Denmark
  • 10 HP motor with frequency converter
  • Geared planetary transmission
  • Variable frequency drive/converter
  • Four fixed speeds with varied speed settings with a speed range from 46 RPMs to 259 RPMs
  • Quick Shift technology enables shifting speeds without stopping
  • Stir-on-lift function incorporates tool as bowl is lifted
  • Large touch display with programmable features, multiple language options, error diagnostics and usage logs
  • Program up to 24 multi-step recipes; time, speed, pause,
  • bowl lowering with favorite buttons for quick start option
  • 90-minute digital timer
  • USB data import and export
  • Option to downsize bowls without adapters
  • Power bowl lift with self-aligning bowl arms
  • Automatic bowl lowering
  • Ability to remove bowl without removing agitators
  • Stainless-steel frame construction
  • IP53 rated; limited dust ingress and splash proof to 60°
  • Permanently lubricated planetary head
  • Dishwasher safe removable bowl guard
  • Interlock prevents operation if guard is opened, or bowl is lowered
  • Emergency stop and overload protection
  • 6-foot power cord
  • ETL and NSF listed
  • Made in Denmark
Product Tool ERGO100-2 ERGO150-2

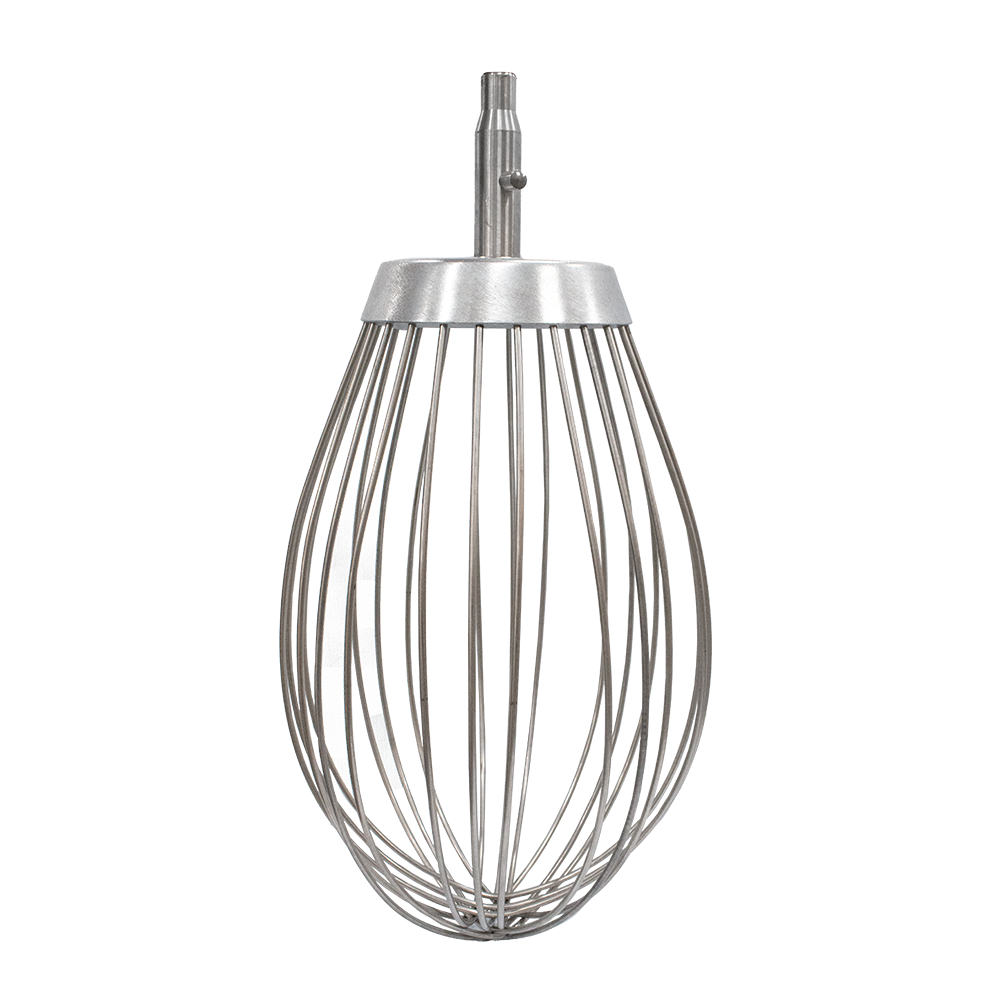

Egg Whites Whip  5 qts. 7 qts.
Whipped Cream Whip  26 qts. 37 qts.
Buttercream Frosting Whip 48 qts. 67 qts.
Layer Sponge Cake Whip 57 lbs. 81 lbs.
Mayonnaise Whip 42 qts. 60 qts.

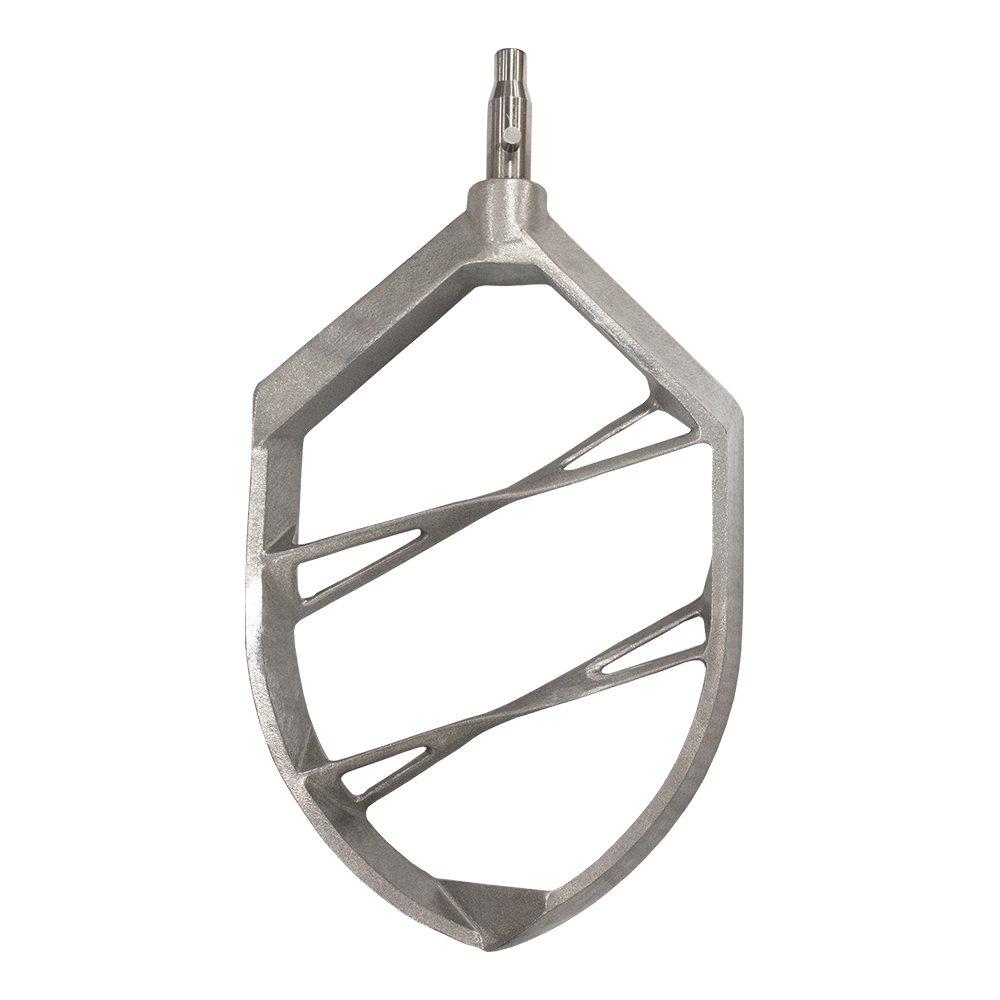

Mashed Potatoes  Beater 119 lbs.  168 lbs.

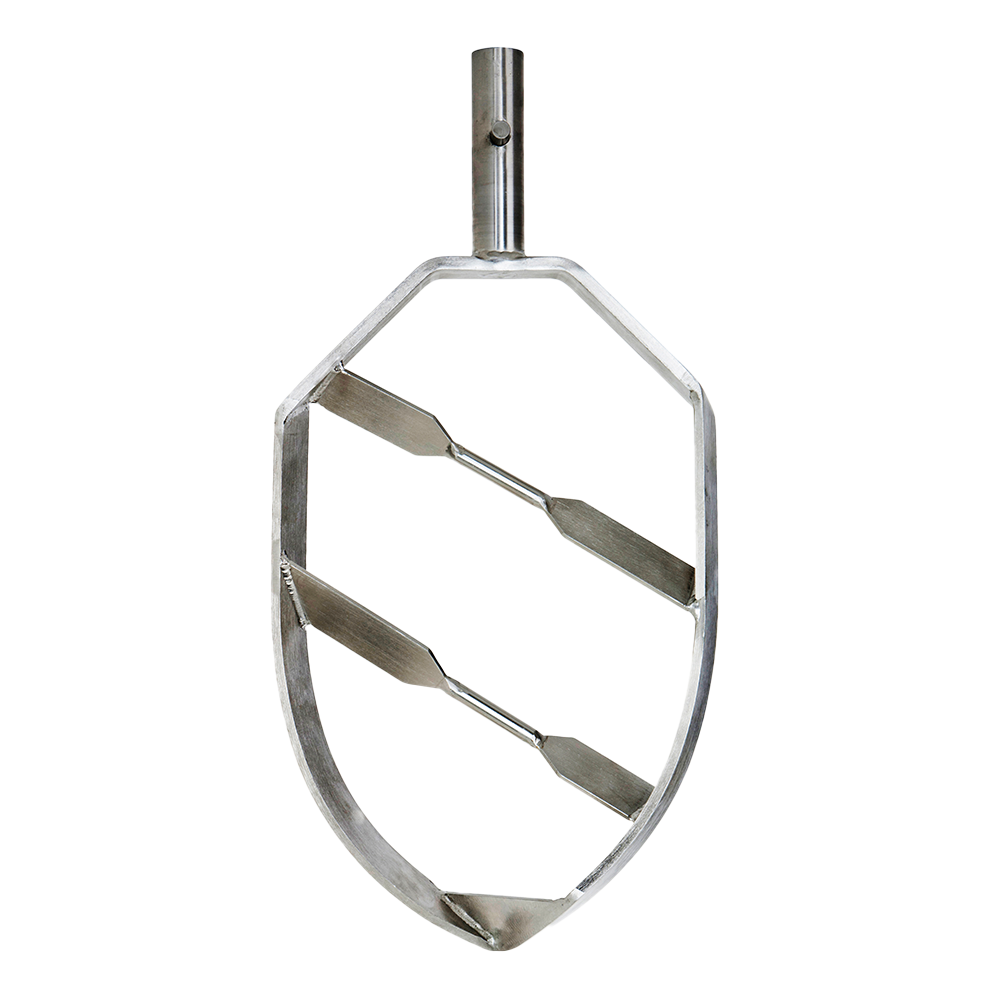

Cake Batter Beater 121 lbs. 170 lbs.
Fondant Icing Beater 89 lbs. 124 lbs.
Herb Butter Beater 77 lbs. 108 lbs.
Meatball Mix Beater 132 lbs. 185 lbs.
Pasta Noodles (50% AR) Hook 99 lbs. 139 lbs.
Dough (50% AR) Hook 110 lbs. 156 lbs.
Dough (60% AR) Hook 143 lbs. 187 lbs.
Dough (70% AR) Hook 143 lbs. 187 lbs.
Rye Bread Dough Hook 176 lbs. 247 lbs.
Sourdough Bread Dough Hook 143 lbs. 187 lbs.
Gluten Free Dough Hook 104 lbs. 146 lbs.
